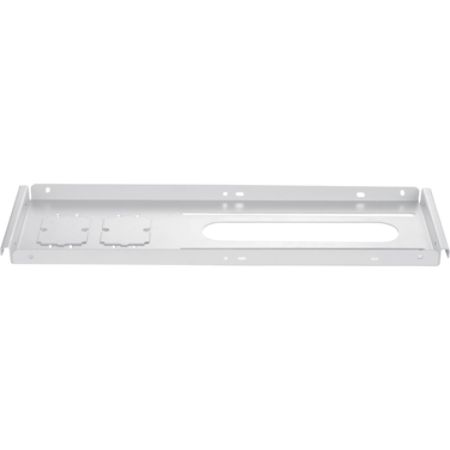

Telehook 8" Suspended Ceiling Tile Item # 845482

 |
Telehook 8" Suspended Ceiling Tile
$ 60 .99 / each $60.99
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The Telehook 8" Ceiling Tile assists with the mounting of projectors into a suspended ceiling structure. It is designed to slot into a grid matrix with minimal weight bearing capability to provide a stable and secure attachment platform with facility for position adjustment and installation of cable sockets. It works with the Atdec Flush and Pole projector mounts as well as 3rd party pole mounts.The TH-PT8 is designed for use with the Telehook TH-WH-PJ-FM and TH-WH-PJ-CM projector mounts (supplied separately). It is also compatible with standard 1.5" NPT poles. It fits neatly into suspended 8x8" and 24 x 8" matrixes but can also be used with other configurations and structures. It is usually installed above a ceiling tile and may be attached to a variety of roofing structures including cement, wood and metal/timber beams. It provides facility for positional adjustment of the mount which depending on the orientation can enable fine tuning of the focus or alignment. Removable panels allow for the optional attachment of electrical blocks for socket installation (blocks can be mounted face up or face down depending on the installation requirement). It is supplied with all attachment hardware as well as a high tensile security cable which provides added protection against matrix failure.

    Back To Top

    Product Details

    Item # 845482
    Manufacturer # LB3843
    height 1 in
    Additional Information Compatible with standard 1.5" NPT poles; Positional adjustment up to 9" provides fine tuning of the focus or alignment; Tile size is 24" x 8"; 4 Mounting points required (5 recommended)
    Features Cable Management; Tilt
    assembly required yes
    width 24.4 in
    package contents 3 x Ceiling Covers; Support Wire; Safety Wire; Mounting Collar; Suspended Ceiling Tile; Upper Mounting Plate; Lower Mounting Plate; 8 x M6Washer; 2 x M6 Set Screw; 4 x Concrete Anchor Bolt; 4 x Turnbuckle; 3mm Allen Key; 2 x Safety Clamp; 4 x Lag Eye Bolt; 4 x M6 Wing Nut; 4 x (M5x16mm) Screw; 4 x (M6x16mm) Screw
    depth 8 in
    Device Supported Projector
    Product Name Projector Suspended Ceiling Tile
    manufacturer Atdec Pty Ltd
    Compatibility Atdec TH-WH-PJ-FM Universal Projector Flush Mount; Atdec TH-WH-PJ-CM Projector Ceiling Mount
    brand name Telehook
    Maximum Load Capacity 50 lb
    material Steel
    color white
    warranty length 10-year limited
    model name TH-PT8
